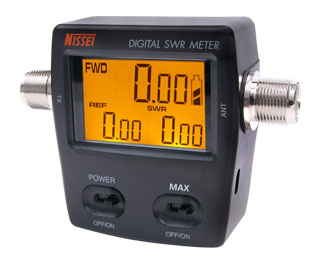

SWR / Watt Meter
▶ Model：RS-50MAX,RS-70MAX
INTRODUCTION：
- Forward / Reversed / VSWR in one push button.
- LED backlit display for ease of reading.
- Power source :internal “AAA” batteries / external USB port.
- Applicable rechargeable battery.
- USB-C – DC 5V output (charger not included).
- Measuring SSB, AM, DMR under MAX mode.
MAIN FEATURES：
- LCD backlit display for ease of reading.
- Forward power / Reversed power / VSWR ration.
- USB-C – DC 5V output (charger not included).
- Measuring SSB, AM, DMR under MAX mode
SPECIFICATIONS：
Model | RS-50MAX | RS-70MAX |
Frequency range | 140-170 / 430-470 MHz | 1.6-60 MHz |
Center calibrated | 145 / 435 MHz | 14 / 50 MHz |
Power range | 0-120W | 0-150W |
Testing function | Fwd / Rev Power, VSWR | |
Measure (MAX OFF) | CW, FM, FDMA | |
Measure (MAX ON) | DMR, SSB, AM | SSB, AM |
Insertion loss | 0.3 dB or lower | |
Impedance | 50 ohm | |
Power source | Battery "AAA" / USB-C port | |
Connector | "M" or "N" type | "M" type |
Dimension | 70W x 78H x 30D mm | |
Net Weight | 220 g (no batteries) | |
